Mechanical seal piping plan 03
Description
Circulation between the seal chamber and pump is created by seal chamber design
Features
- The mechanical seal is cooled by product flow created by seal chamber design.
- Seal chamber design provides improved venting of air of air of vapours.
Use
- Generally used in applications where there is not significant seal heat generated.
- Solids could collect in traditional seal chamber.
Caution
- Not suitable for cylindrical bore seal chambers.
- May not be suitable for high pressure or high temperature seal chambers.

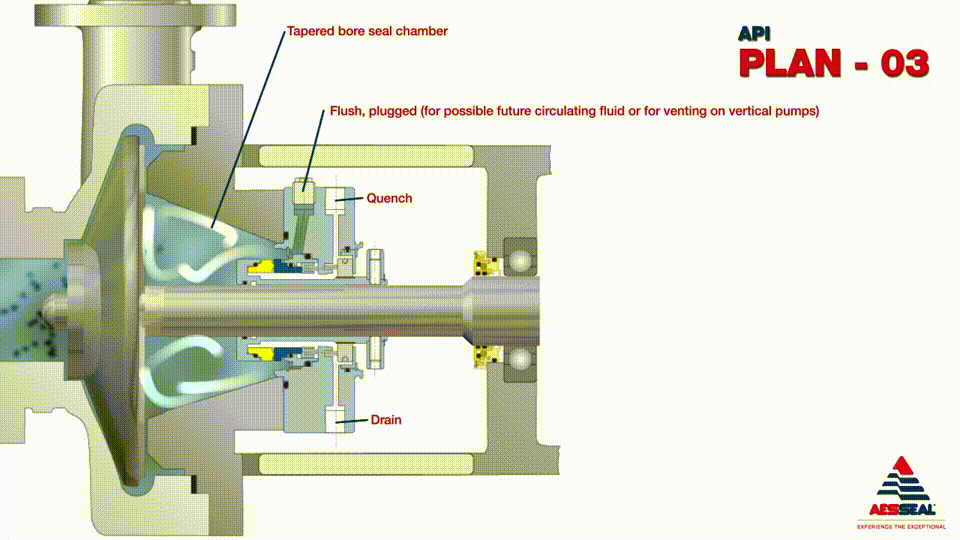

API pump seal plan 03 (single seal)
