two stage BB1

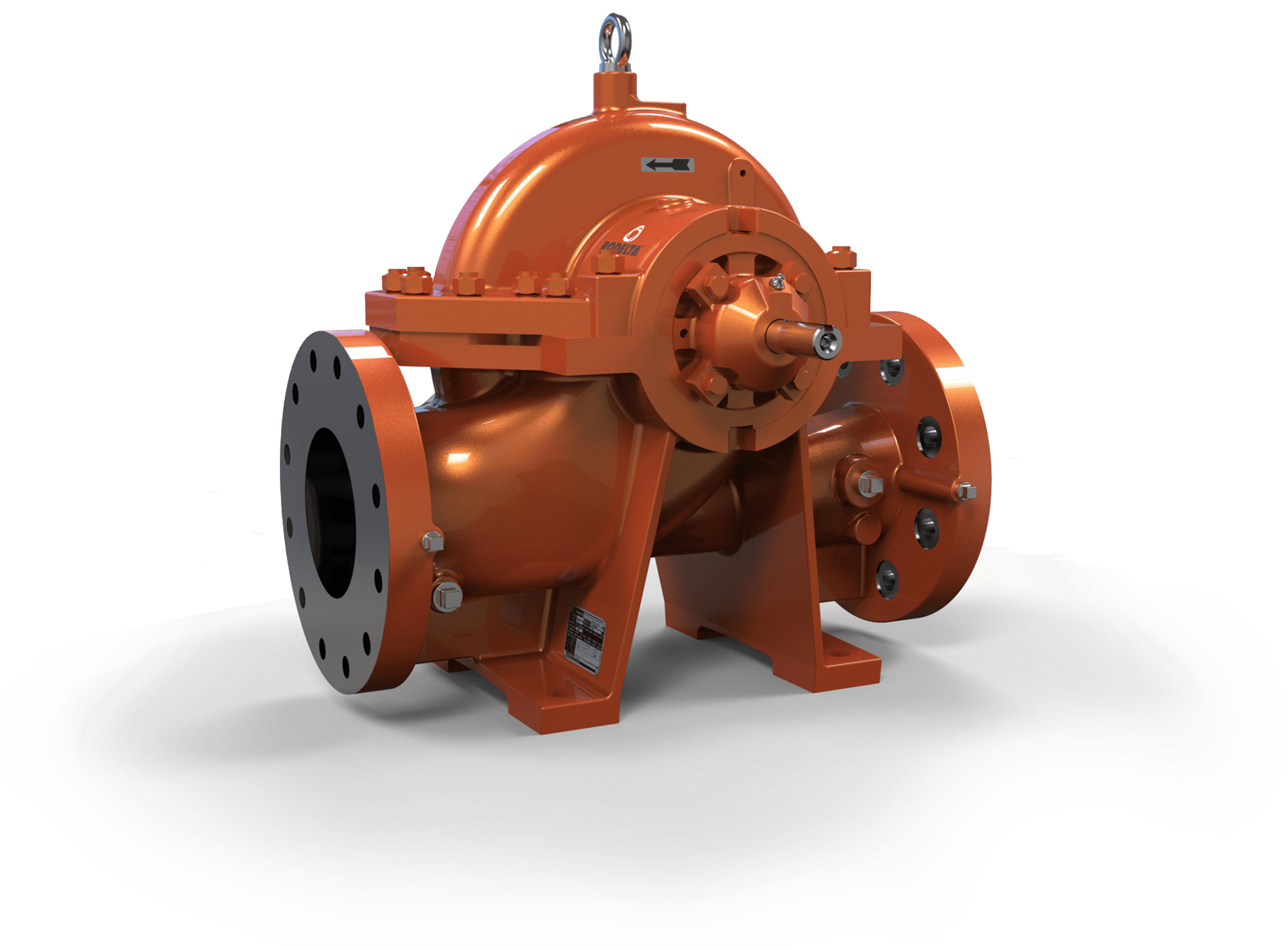

Rodelta i-HT (BB1)

The BB1 type, i-HT horizontal split case single/double stage centrifugal pumps. All single stage pumps are provided with double suction type impeller. Both single stage/double stage pumps are fitted with DIN 24960 cavity mechanical seal. The impeller/s is/are centrally placed on a sturdy designed shaft and the entire rotating assembly is dynamically balanced to provide a smooth, trouble free, longer and efficient operation.

For alternative specifications contact us.

  • chemical industryChemical Industry
  • district heatingDistrict Heating
  • Drinking waterDrinking Water
  • Dry dockDry Dock
  • Fire fightingFire Fighting
  • Flood contoleFlood Control
  • General IndustryGeneral Industry
  • IrrigationIrrigation
  • Power generationPower Generation
  • Wast WaterWast Water
  • Water treatmentWater Treatment

Rodelta i-HT (BB1)

Features:

  • Highly efficient – low operation cost
  • Compact size and less floor space
  • Low down time – quickly fixable
  • Low prime mover cost
  • Lowest pumping – project cost
  •  Dual Drive to reduce downtime
  • The pumps are offered with CE marking

Specifications:

  • Delivery Sizes Upto 300 mm
  • Discharge 30-1300 m3 /hr
  • Head 30 to 250 m
  • Temperature -10 deg C to 90 deg C

Applications:

  • Suitable for Fire fighting
  • Primary & secondary HVAC application
  • High pressure boosting system
  • Dewatering in mines
  • Cooling tower
  • Recirculation
  • Desalination
  • Water supply
  • Paper plant
  • Steel plant for high pressure injection
  • Sugar plant
  • Industrial utility water application

Constructional features:

Pump Casing:
Horizontal axially spilt volute type, suction and discharge nozzles and supporting feet are cast integral with lower half casing.

Impeller:
Double or single suction type accurately balanced. In case of double suction impellers, the hydraulic thrust is balanced automatically because of pressure equalization on both sides of the impeller.

Shafts:
The high tensile steel shaft accurately machined and ground is supported by antifriction bearings. The shaft is protected by shaft sleeves from wear in stuffing box area.

Stuffing Box:
Can be sealed by gland packing or by mechanical seal and is suitable for liquids having temperature from -10°C up to 90°C.

Bearings:
Grease Lubricated deep groove ball / roller bearings are provided. Large pumps can be provided with Oil Lubricated / Oil ring bearings.

Direction of Rotation:
– Standard: Anticlockwise (ACW) when viewed from driving end.
– Optional: Clockwise (CW) when viewed from driving end.

Drive:
Suitable for coupling with electric motors, engines or steam turbines either directly or through belt drives, gear boxes etc.

Flanges:
– Standard: Drilled to BS: 10 Table D/E/F or BS-4504, Table PN16 plain face depending upon model.
– Optional: DIN /ASA with suitable pressure rating depending upon model.



Request info

Request datasheet

i-HT (BB1)

EU US
  • Features Axially split, double suction, enclosed type impeller design
  • Capacity @ BEP Upto 1300 m3/hr Upto 5725 Gpm
  • Head Upto 250 m Upto 820 feet
  • Temperature range -10 to 100 °C -14 to 212 °F
  • Discharge pressure PN 16/ PN 24 Class 125/ Class 150
  • Material (Casing/Impeller) Cast Iron, Bronze, SS, Duplex, Super Duplex
  • Nozzle Orientation (suc/dis) Side-side (Horizontal / Vertical execution possible)
  • Standard Motor Sync. Speed 1000/1500/3000 rpm 900/1200/1800 rpm
  • Options Gland packing / Mechanical Seal
  • Flange drilling standard BS EN/DIN/ANSI /ASA
