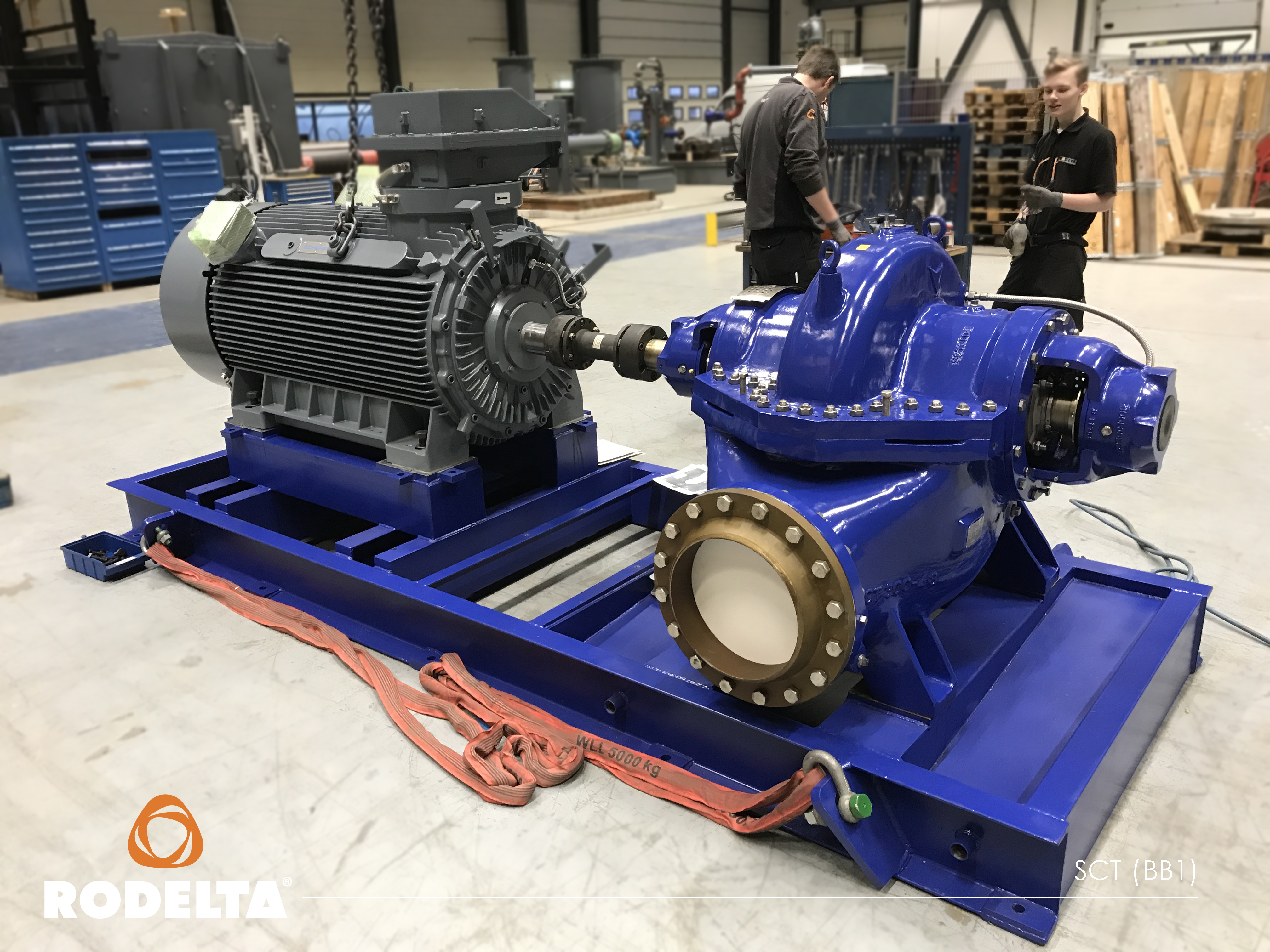

Rodelta SCT (BB1)

Features:

• Split horizontally with thru bore design.
• Enclosed type impeller
• Due to modular concept, better interchangeability of components is possible, which results in fewer inventories.
• Gland packed / Mechanical seal
• 50HZ / 60 HZ availability
•  The pumps are offered with CE marking
•  Depending on the application, area classification ATEX certification possible

Specifications:

• Delivery size up to 250 mm
• Capacity up to 1150 m³ /hr
• Head up to 115 m
• Temperature  -10 °C to 90 °C

Applications:

Suitable for handling water with slight impurities in Industries, Water Works, Irrigation, Sprinkler Irrigation, Fire-fighting, Air Conditioning Plants, Water Circulation, Processing Plants.

Constructional features:

Pump Casing:
Horizontal axially spilt volute type, suction and discharge nozzles and supporting feet are cast integral with lower half casing.

Impeller:
Double or single suction type accurately balanced. In case of double suction impellers, the hydraulic thrust is balanced automatically because of pressure equalization on both sides of the impeller.

Shafts:
The high tensile steel shaft accurately machined and ground is supported by antifriction bearings. The shaft is protected by shaft sleeves from wear in stuffing box area.

Stuffing Box:
Can be sealed by gland packing or by mechanical seal and is suitable for liquids having temperature from  -10°C up to 90°C.

Bearings:
Grease Lubricated deep groove ball / roller bearings are provided. Large pumps can be provided with Oil Lubricated / Oil ring bearings.

Direction of Rotation:
– Standard: Anticlockwise (ACW) when viewed from driving end.
– Optional: Clockwise (CW) when viewed from driving end.

Drive:
Suitable for coupling with electric motors, engines or steam turbines either directly or through belt drives, gear boxes etc.

Flanges:
– Standard: Drilled to BS: 10 Table D/E/F or BS-4504, Table PN16 plain face depending upon model.
– Optional: DIN /ASA with suitable pressure rating depending upon model.
