non clog OH1

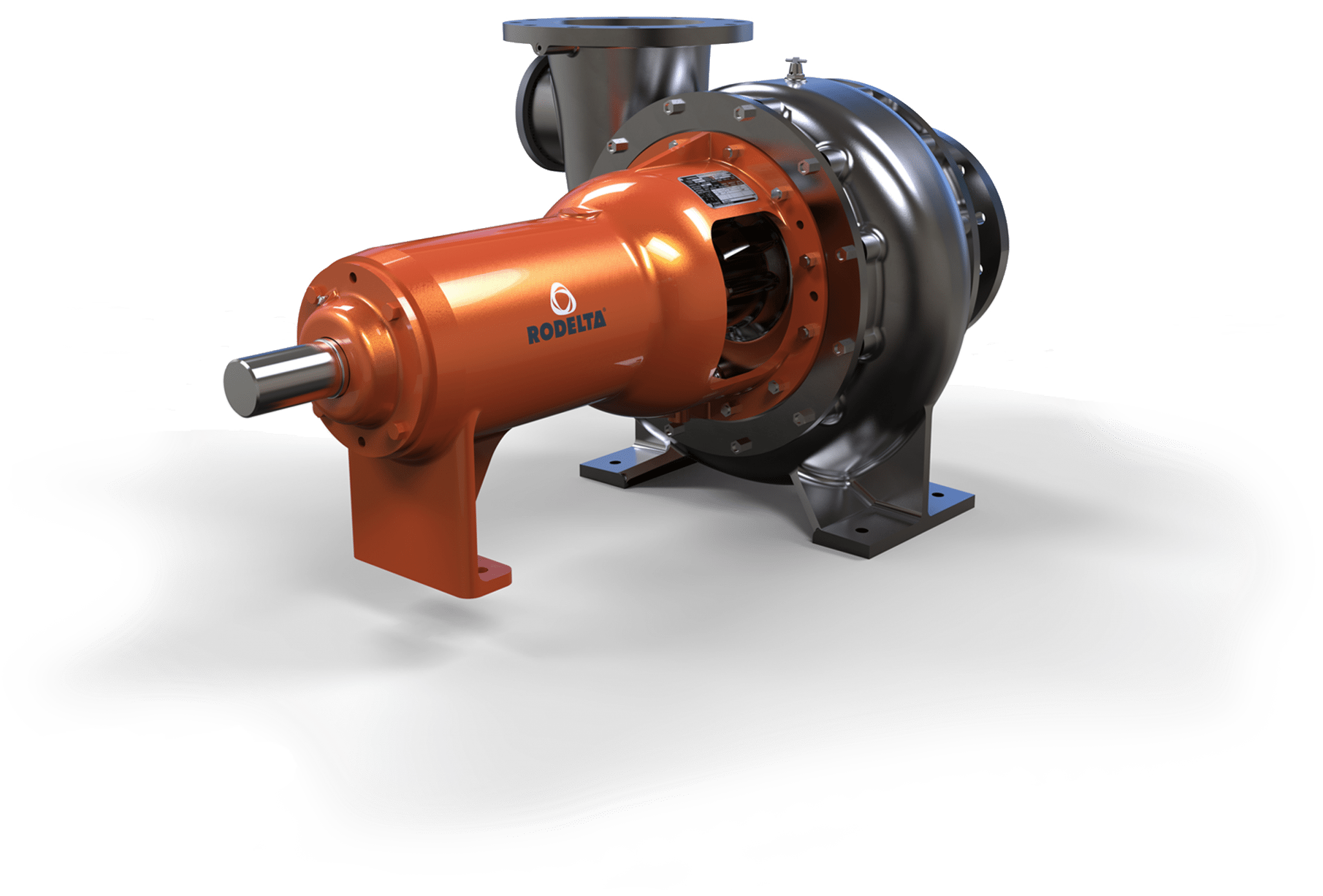

Rodelta SHL (OH1)

The OH1 type, SHL pumps are horizontal end suction type, Single stage and Single suction pumps with back pull-out type design. These pumps operate at 50 Hz and 60 Hz. End suction with vertical delivery, high efficiency volute type to pass any solid that passes through the impeller and provides smooth unobstructed flow. The delivery sizes range from 250mm to 900mm.

For alternative specifications contact us.

  • chemical industryChemical Industry
  • Flood contoleFlood Control
  • General IndustryGeneral Industry
  • Mining and MineralsMining & Minerals
  • Pulp and paperPulp & Paper
  • Wast WaterWast Water
  • Water treatmentWater Treatment

Rodelta SHL (OH1)

Features:

  • Solid size up to 150 mm
  • Back pull-out design
  • Gland packed / Mechanical Seal
  • 50 Hz / 60 Hz availability
  • Also available in vertical execution as SHL-V.
  • The pumps are offered with CE marking

Specifications:

  • Capacity up to 13000 m³/hr
  • Head up to 82 m
  • Temperature (-) 10 °C to 90 °C

 Applications:

For handling liquids with solids in suspension, sludge or pulpy material in Paper Industries, Sewage or waste with soft solids in suspension, Viscous liquids or powdered material slurries, Contaminated process liquids like sugar factory waste, trade liquors, etc.

Constructional features:

Casing:
End suction with vertical delivery, high efficiency volute type to pass any solid that passes through the impeller and provides smooth unobstructed flow. Delivery flange and feet are cast Integral with the casing. A large Inspection opening is provided on casing throat and on suction cover.

Impeller:
Single suction type enclosed Impeller dynamically balanced. Semi-open Impeller on request.

Shaft:
Shalt is supported by two bearings. Shaft in stuffing box area is protected by a shaft sleeve.

Stuffing box:
Standard stuffing box sealing is grease. Optional sealing by water. Gland packed without cooling up to 90 deg C and with cooling up to 140 deg C. Mechanical seal arrangement possible.

Bearings:
Standard: Spherical Roller Bearing at DE. Cylindrical roller bearing at NDE.
Standard lubrication is grease and optional is oil.

Direction of rotation:
Clockwise viewed from driving end.

Drive:
These pumps are suitable for coupling with electric motor or engine directly or through belt drive. Vertical pumps can be driven through Cordon Shafts. Cardon Shafts can be provided with protection cover if required.

Flanges:
– Standard drilling to DIN 2533 ND 16.
– Optional drilling to ASAIBS/IS

Request info

Request datasheet

SHL (OH1)

EU US
  • Features Volute type, Enclosed type impeller, Back Pull-out end suction pump
  • Capacity @ BEP Upto 13000 m3/hr Upto 57252 Gpm
  • Head Upto 82 m Upto 270 feet
  • Temperature range -10 to 90 °C -14 to 194 °F
  • Discharge pressure upto PN 10 upto Class 125
  • Material (Casing/Impeller) Cast Iron, Bronze, SS, Duplex, Super Duplex
  • Nozzle Orientation (suc/dis) Top Center-line discharge (self venting)
  • Standard Motor Sync. Speed 1500 rpm 1200 rpm
  • Options Gland packing / Mechanical Seal
  • Flange drilling standard BS EN/DIN/ANSI /ASA
