    Rodelta SPV

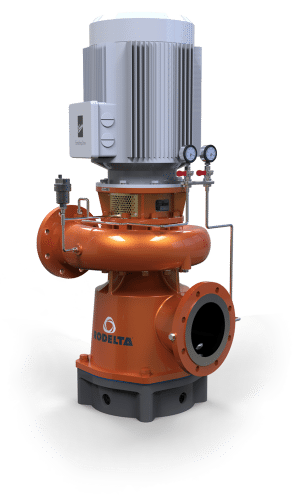

    The pump type SPV is an overhung single-stage mixed flow centrifugal pump (vertical) suitable for clean or contaminated liquids of high volume and low head. Access for impeller maintenance can be achieved with either back pull out or suction flange removal.

    For alternative specifications contact us.

    • district heatingDistrict Heating
    • Drinking waterDrinking Water
    • IrrigationIrrigation
    • Pulp and paperPulp & Paper
    • Wast WaterWast Water
    • Water treatmentWater Treatment

    Rodelta SPV

    Features:

    • High efficiency = Low Power consumption
    • Axial suction & tangential discharge
    • Uniform power requirement over range
    • Large solids handling ability
    • Integral cast feet for greater stability
    • Back pull out
    • Suction flange access to impeller
    • Packed gland or Mech. Seal options
    • Electric or diesel driven

    Specifications:

    • Delivery size up to 500mm
    • Capacity up to 7000m3/hr
    • Head up to 30m per stage
    • Suitable for liquid Temperature: Up to 90ºC
    • Sealing Arrangement: Gland packing or with mechanical seals
    • Flanges Drilling Standard: Flanges can be as per BS EN/DIN/ANSI/ASA standard

    Applications:

    • Irrigation
    • Light/Medium Slurries
    • Drainage water
    • Return activated Sludge
    • Large volume low heads

    Applications:

    • Agricultural
    • Water
    • Chemical & Petrochemical
    • Municipal

    Constructional features:

    Pump Casing:
    Vertical end suction high efficiency volute type with suction bend

    Impeller:
    Non clog – Semi opens / Enclosed type and balanced dynamically.
    Hydraulically balanced by balancing holes / back vanes.

    Shaft:
    Made of high tensile steel, accurately grounded. Supported by deep groove ball bearings and thrust bearing housed in the bearing housing.

    Stuffing Box:
    Gland packed supply is standard for liquids having temperature up to 90°C
    Mechanical seal can be supplied against request.

    Bearing:
    Deep groove ball bearing and thrust bearing.
    Standard lubrication – Grease lubrication.

    Direction of Rotation:
    Clockwise viewed from driving end.

    Drive:
    Suitable for coupling with electric motors.

    Request info

    Request datasheet

    SPV

    EU US
    • Features Volute type,mixed flow- semi open/enclosed type impeller, top pull-out
    • Capacity @ BEP Upto 7000 m3/hr Upto 30825 Gpm
    • Head Upto 30 m Upto 100 feet
    • Temperature range -20 to 90 °C -4 to 194 °F
    • Discharge pressure Upto PN 10 upto 145 psig
    • Material (Casing/Impeller) Cast Iron, Bronze, SS, Duplex, Super Duplex
    • Nozzle Orientation (suc/dis) Bottom elbow suction / Side delivery(Vertical execution)
    • Standard Motor Sync. Speed Upto 1500 rpm Upto 1800 rpm
    • Options Gland packing / Mechanical Seal
    • Flange drilling standard BS EN/DIN/ANSI /ASA
