API Cantilever VS5
  • cantilever pump
  • VS5 pump
  • Cantilever (VS5)
  • Dry well
  • suction extension cantilever pump
  • Dry well, or wet well version cantilever pump.

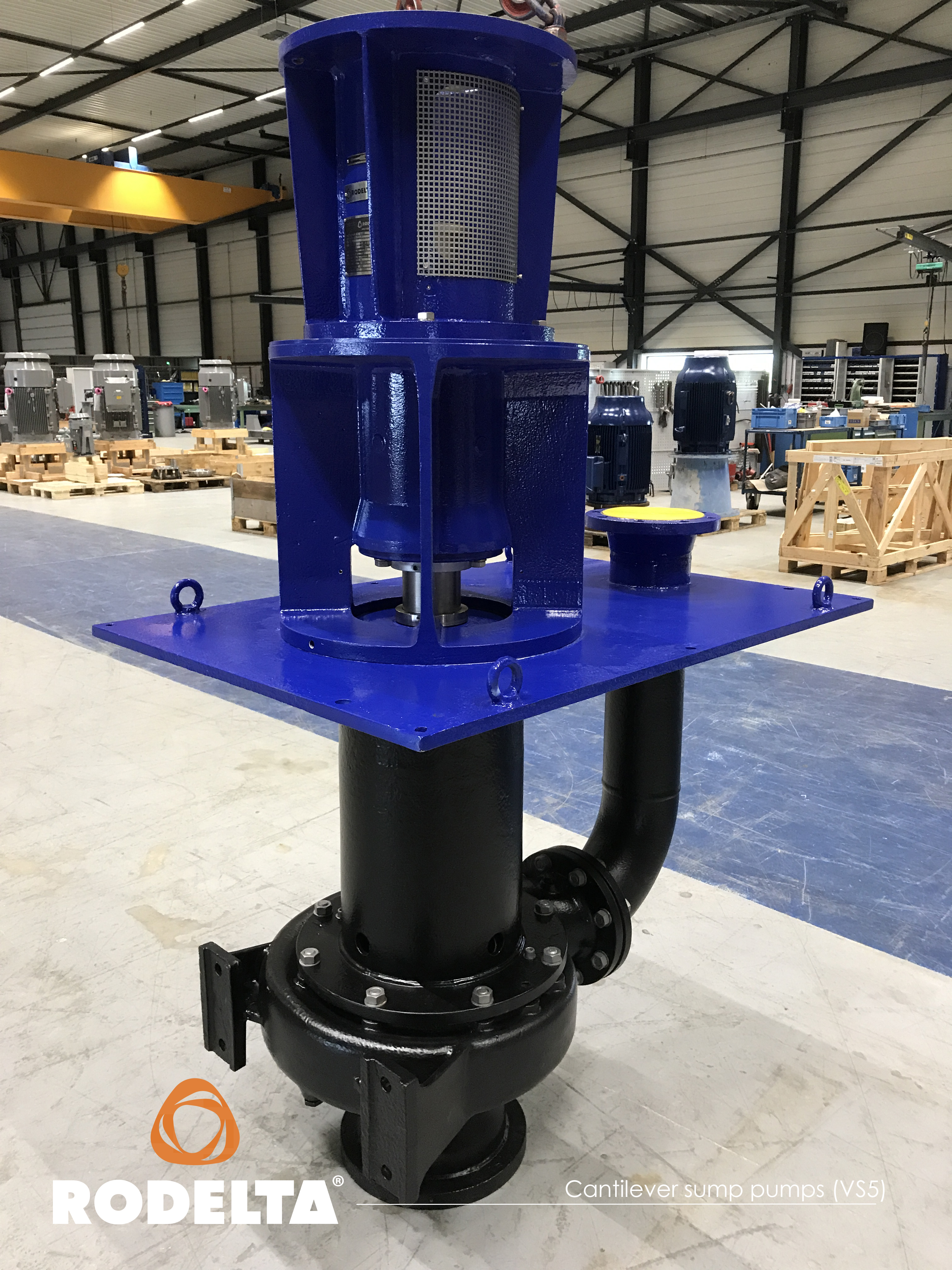

Rodelta TCZ (API Cantilever VS5)

The pump type TCZ (VS5) is a vertically mounted suspended single casing volute pump “true” cantilever pump with no shaft supports, seals, bearings or bushings below the bearing housing. All bearings are suspended in a cartridge above the cover plate to provide protection in case of flooding. The TCZ has a closed impeller and can be supplied with a wide variety of competitive hydraulics. Also see our pump types TCE (VS5), TCN (VS5), - TCF (VS5), for more hydraulic options.

For alternative specifications contact us.

  • Chemical Industry
  • General Industry
  • Oil & Gas Downstream
  • Oil & Gas Upstream
  • Power Generation

Rodelta TCZ (API Cantilever VS5)

Features: TCZ ( API Cantilever VS5 )

  • According API 610 (VS5)
  • Used in applications with liquids containing solids or abrasive slurries
  • When no intermediate bearings inside the liquids are allowed
  • Low OPEX and CAPEX which results in a low total cost of ownership
  • Performance of the pump can be customized to customer requirements by means of a closed, open and semi-open impeller
  • Where leakages are forbidden for environmental and health protection reasons
  • Dry well or wet well construction possible
  • Can run dry indefinitely


  • Delivery size up to 200mm
  • Capacity up to 1.200m3/hr
  • Head up to 50m
  • Suitable for liquid Temperature: Up to 200ºC  (300ºC optional)
  • Sealing Arrangement: Gland packing or with mechanical seals


  • Abrasive or heavy contaminated liquids in refineries petrochemical and industrial plants Clean/contaminated fluids.
  • Homogeneous slurries.
  • Medium Hydrocarbons.
  • Primary, Secondary & activated sludge.
  • Liquids with entrained gases

Constructional features:

  • Heavy-duty roller bearings, non floating shaft will guarantee long bearing lifetime
  • All VS5 models are fully designed to fit mechanical seal in accordance to API682
  • Flanges Drilling Standard: Flanges can be as per BS EN/DIN/ANSI/ASA standard
  • Rigid constructed base frame and support housing assures precise and accurate mounting
  • Possibility for extended suction pipe construction. This results in a larger immersion suction depth and  can also lead to lower purchase costs.
    More info extended suction pipe construction.


Also see our pump types TCE (VS5), TCN (VS5), – TCF (VS5), for more hydraulic options.

Request info

    Deze website wordt beschermd door reCAPTCHA en het Google Privacybeleid en de Servicevoorwaarden zijn van toepassing.

    Request datasheet

      Deze website wordt beschermd door reCAPTCHA en het Google Privacybeleid en de Servicevoorwaarden zijn van toepassing.

      TCZ (API Cantilever VS5)

      EU US
      • Design standard ISO 13709 ISO 13709
      • Features Vertical suspended, cantilever ,volute VS5 type (API610)
      • Capacity @ BEP Upto 300 m3/hr Upto 1320 Gpm
      • Head Upto 250 m Upto 820 feet
      • Temperature range -20 to 250 °C -4 to 480 °F
      • Discharge pressure Upto Cl. 150# Upto Cl. 150#
      • Nozzle Orientation (suc/dis) Discharge through side discharge pipe
      • Standard Motor Sync. Speed 750/1000/1500 rpm 900/1200/1800 rpm
      • Max. Operating Speed 1800 rpm
      • Flange ratings(#RF) Cl. 150/300
      • Maximum Suspension Length upto 2,5m (with suction pipe higher depths possible)
